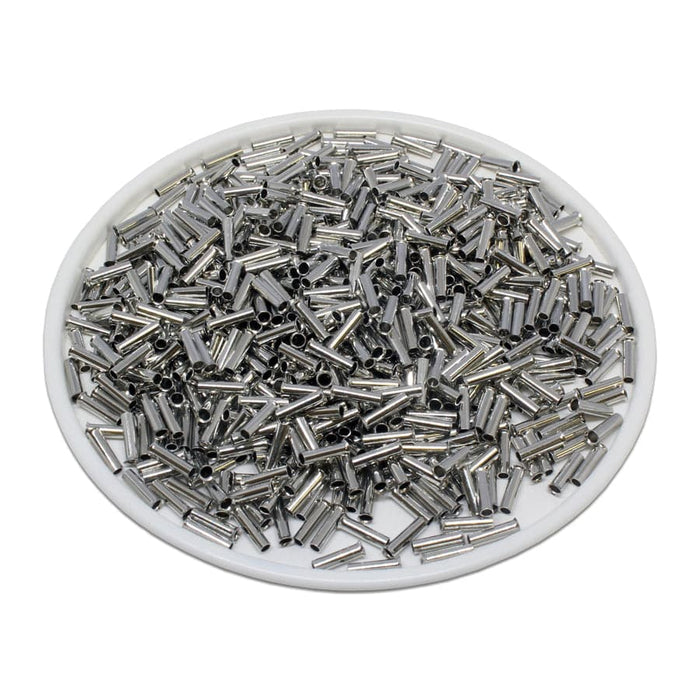

N07506 - 20 AWG (6mm Pin) Non Insulated Ferrules

Original price $10.10 - Original price $10.10
Original price
$10.10
$10.10 - $10.10
Current price $10.10
SKU N07506
Availability:
in stock, ready to be shipped
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 20 AWG (0.75mm2)
Material: Tin-Plated Copper
L1: 6mm (0.23")
D: 1.5mm (0.06")
D1: 1.2mm (0.05")
D2: 1.9mm (0.07")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 17A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross Reference Parts:
ABB: XUSG01957
American Electrical: 12810075
Burndy: 10097763 YF2006UI
Hubbell: 10097763 YF2006UI
Cembre: KE7508ST
Greenlee: 71/8VZ
Panduit: F76-8-M
Phoenix Contact: 3202504
SPC Technology: SPC4538 84N2072
WAGO: 216-102
Weidmuller: 02827 - 0282700000
ZF: V3AE9427
